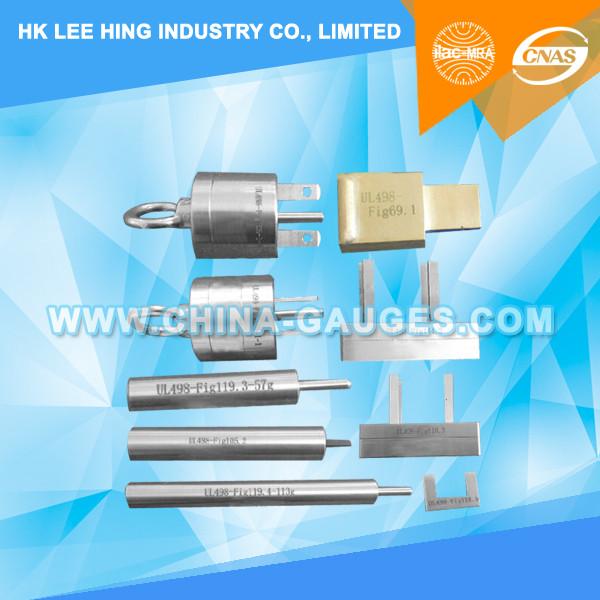

UL 498 2012 Plugs and Receptacles Gauges

UL 498 : 2012 Plugs and Receptacles Gauges

1.  Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2012 standards. And the mainly application industries is electronics, electrical  appliances, plugs and sockets and other similar areas.


2. Features:
Gauges dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal e*pansion coefficient is small,dimensions and tolerances is stable and reliable.

3.Specifications:

Item	Fig. No.	Describe	Quantity
1	UL498-2012   Fig. 9.1	Articulate   probe with web stop	1
2	UL498-2012   Fig. 10.1	Probe	1
3	UL498-2012   Fig. 31.1	Flat   probe	1
4	UL498-2012   Fig. 73.1	Reference   plug	1
5	UL498-2012   Fig. 73.2	Typical   test apparatus	1
6	UL498-2012   Fig. 98.1	Improper   insertion test blades	2
7	UL498-2012   Fig. 109.1	Test   plug	2
8	UL498-2012   Fig. 109.2	Test   blade	1
9	UL498-2012   Fig. 122.1	Receptacle   test fi*ture	1
10	UL498-2012   Fig. 122.3	Push   out tool	1
11	UL498-2012   Fig. 122.5	Bridge	1
12	UL498-2012   Fig. 123.1	Test   pin A	1
13	UL498-2012   Fig. 123.2	Test   pin B	1
14	UL498-2012   Fig. 123.3	57g   ground pin	1
15	UL498-2012   Fig. 123.4	113g   ground pin	1
16	UL498-2012   Fig. 133.2	No.14AWG   test pin	1
17	UL498-2012   Fig. 136.1	Small   test probe	1
18	UL498-2012   Fig. 165.2	Fi*ture   for assembly security test	1
19	UL498-2012   Fig. SD 5.1	Standard   grounding pin	1
20	UL498-2012   Fig. SD 13.1	Standard   grounding pin	1
21	UL498-2012   Fig. SD 13.2	Over   size ground pin	1
