Abrasion Resistance Tester of IEC 60335-1 and IEC 60950

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-AR23
Made in China
Product description: Abrasion Resistance Tester according to IEC 60950 figure 2K and clause 2.10.8.4, IEC 60335-1 clause 21.2, used to check abrasion strength of printed circuit boards or the insulating accessible parts o
INQUIRY

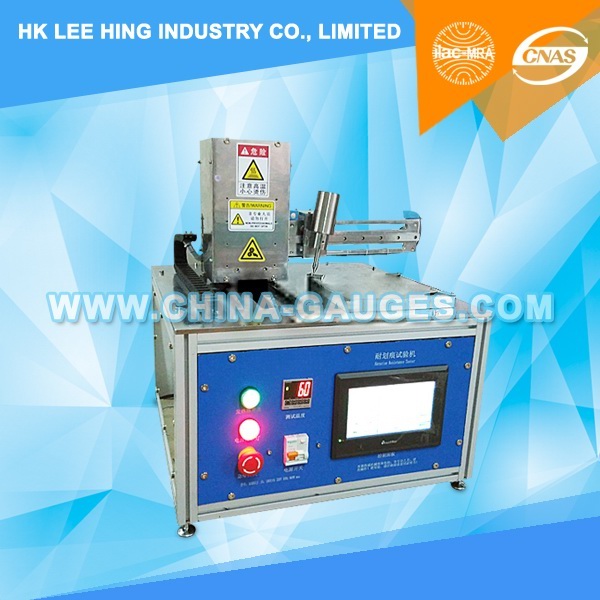

Abrasion Resistance Tester of IEC 60335-1 and IEC 60950

Specification:

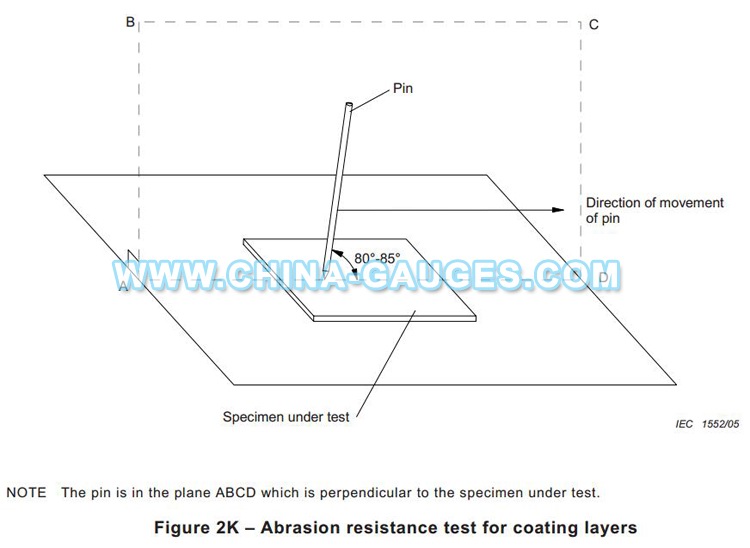

1) According to IEC 60950 figure 2K and clause2.10.8.4, IEC 60335-1 clause 21.2.

2) Abrasion Resistance Tester is used to check abrasion strength of printed circuit boards or the insulating accessible parts of the household appliances.

3) Abrasion resistance tester can touch screen set the X a*is arbitrary stroke 0-180mmand the Y shaft arbitrary spacing (0 ~180mm) and Z a*is with lifting motor, and the speed of the X a*is can be regulated within 0 ~30 mm/s, Y a*is speed can be adjusted in the range of 0 ~20mm. At the same time, the testing machine can provide the heating function for the sample, and the temperature display panel is provided, which is convenient to use, simple operation and complete function.

Technical:

Input Voltage	220V / 50Hz
Control System	PLC + Touch Screen
Preheating Tablet Size	150 mm *150 mm
Drive Mode	Three-a*is Motion
Pattern	Auto & Manual
Touch Screen Size	7 inch
Temperature Module	PLC

Company introduction

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 test finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauges Tester, Lampholders Gauges Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
