Plugs & Socket Outlets Gauges

CEI 23-50 Italy Standard Plug and Socket Outlets Gauges

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-CEI23
Made in China
Product description: CEI 23-50 Italy Standard Plug and Socket Outlets Gauges. According to standard CEI 23-50.
INQUIRY

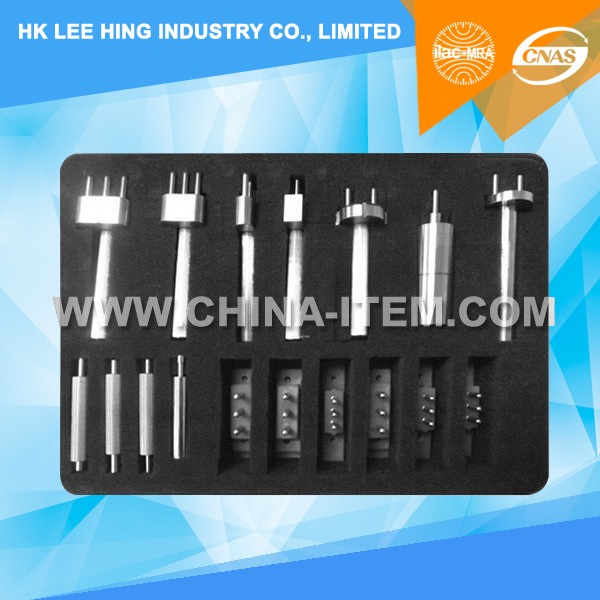

CEI 23-50 Italy Standard Plug and Socket Outlets Gauges

1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to CEI 23-50 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

3. Specifications:

1	CEI-23-50-S30	Gauges S30 of 16A 250V
2	CEI-23-50-S31	Gauges S31 of 16A 250V
3	CEI-23-50-S32	Gauges S32 of 16A 250V
4	CEI-23-50-C1	Gauges C1 of 10A 250V & 16A 250V
5	CEI-23-50-C2	Gauges C2
6	CEI-23-50-C3	Gauges C3
7	CEI-23-50-C4	Gauges C4
8	CEI-23-50-C5	Gauges C5
9	CEI-23-50-C6	Gauges C6
10	CEI-23-50-C7	Gauges C7
11	CEI-23-50-C8	Gauges C8
12	CEI-23-50-C9	Gauges C9
13	CEI-23-50-C10	Gauges C10
14	CEI-23-50-C11	Gauges C11
