Plugs & Socket Outlets Gauges

AS/NZS 3112 Plugs and Socket-Outlets Gauge

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-ASNZS
Made in China
Product description: AS/NZS 3112 Plugs and Socket-Outlets Gauge. According to standard AS/NZS 3112.
INQUIRY

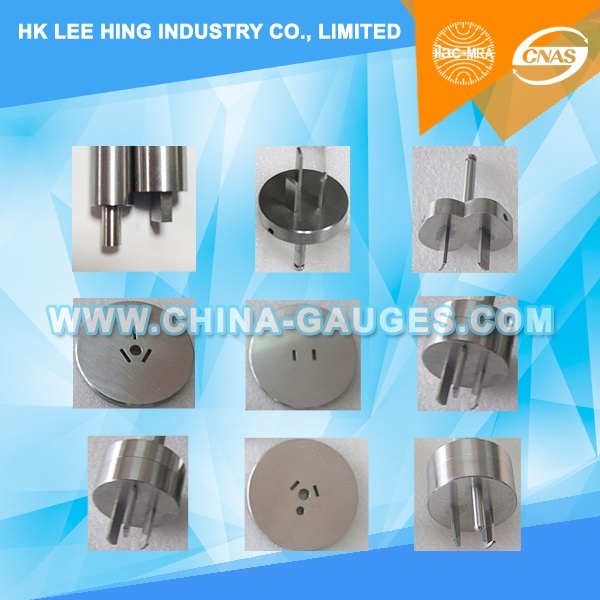

AS/NZS 3112 Plugs and Socket-Outlets Gauge

1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

3. Specifications:

Name	Description	QTY
AS/NZS3112 figure3.1/10A/15A	Depth of No-contact test gauge	1
AS/NZS3112 figure3.6 Max 10A	Device for checking the resistance to lateral strain (Three Pin Gauge)	1
AS/NZS3112 figure3.7 Max 10A	Device for checking the resistance to lateral strain (Two Pin Gauge)	1
AS/NZS3112 figure A1	Gauge for three –Pin Flat-Pin Plugs	1
AS/NZS3112 figure B1	Gauge for Two-Pin Flat-Pin Flat- Pin Plugs with Parallel Pins	1
AS/NZS3112 figure C1	Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test.	1
AS/NZS3112 figure D1	Three-pin test plug with flat pins for abnormal insertion test .	1
AS/NZS3112 figure F1	Plugs and socket-outlets for use in extra-low voltage circuits	1
AS/NZS3112 figure G1	Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test	1
