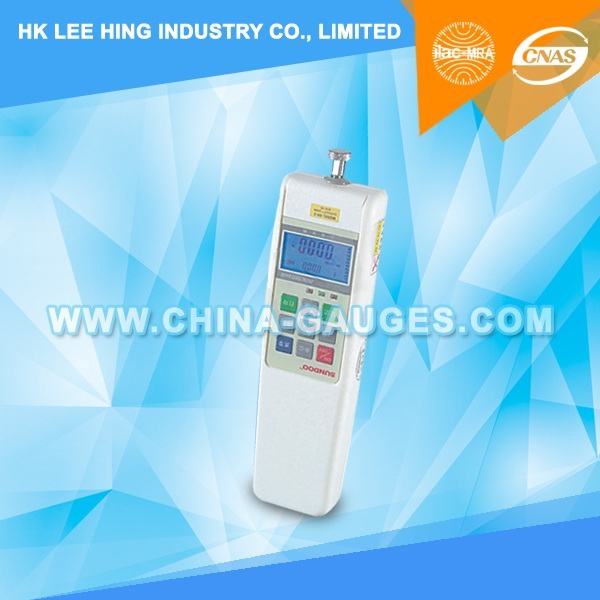

100N Push and Pull Force Meter

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
SH-100
Made in China
Product description: 100N Push and Pull Force Meter is multifunctional push pull testing instrument with high resolution. It is applied in push/pull test, insertion/withdraw test, and fracture test. More over, the product
INQUIRY

Brief Introduction:

100N Push and Pull Force Meter is multifunctional push pull testing instrument with high resolution. It is applied in push/pull test, insertion/withdraw test, and fracture test. More over, the product, connecting to computer to display the test force curve and test process, is efficient push pull testing equipment in a new generation.

Product Trait:

1.Peak holding and auto-releasing function: The peak holding time can be set (1-10 seconds);

2.Comparing function: Initial input of the tolerance limit (Ma*/Min) enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);

3.Memory function: Memory 10 testing data, and calculate the average;

4.Units conversion: Converting three units(N, kgf, lbf) automatically;

5.LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction;

6.Automatic power off function: Power off time (1-60 minutes) can be set by user;

7.RS-232Coutput: Transmitting the data to Printer or computer, saving it into "E*cel" for analysis or printing;

8.Patent number: ZL200620013022.2,ZL200610072362.7;

Model	SH-100
Capacity	100N
Load Resolution	0.05N
Sensor conformation	Sensor Inside
Measuring range	10%~100% FS
Inaccuracy	±0.5%
Power	8.4V 12V * 7 Nickel hydride battery
Charging time	about 4 hours
Operating time	about 40 hours
Waiting time	3 month
Battery life	≥300 of times
Adaptor	Input: AC 220V 50Hz; Output: DC 12V 300mA;
Weight	about0.7kg
