Test Probe,Test Pin,Test Finger

UL 499 Fig. 7.4 Probe for Hand-supported Enclosure PA180

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-PA180
Made in China

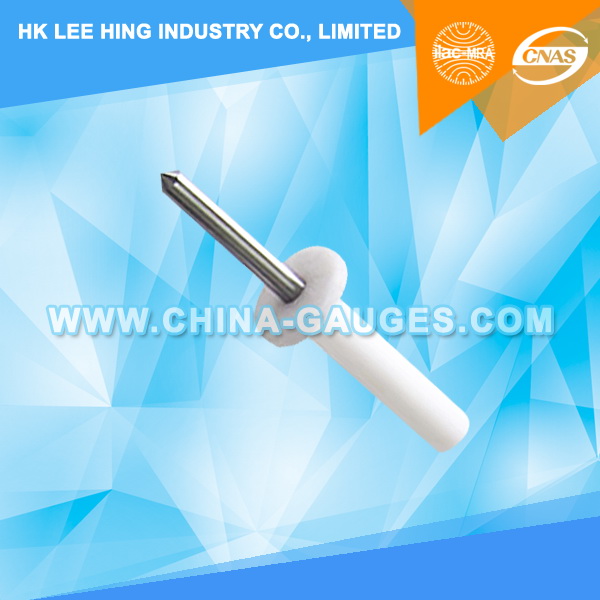

Product description: UL 499 Fig. 7.4 Probe for Hand-supported Enclosure PA180 According to standard UL 499 Fig. 7.4
INQUIRY

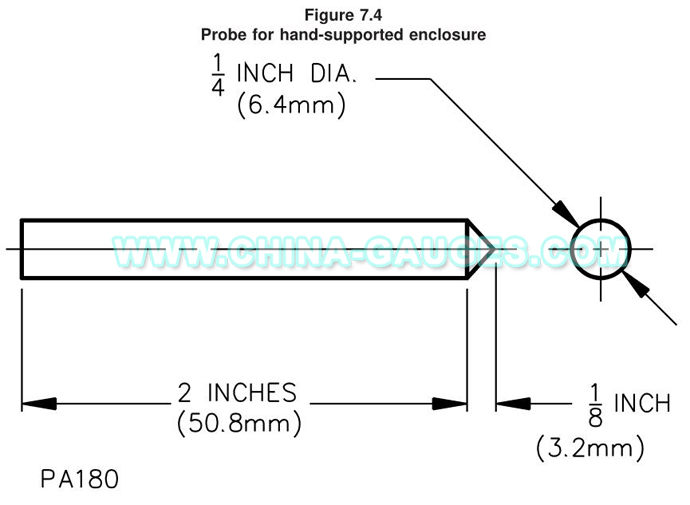

Parameter:
1) Total length: 50.8 mm (2 INCHES)
2) Head length: 3.2 mm (1/8 INCH)
3) test probe Dia.: 6.4 mm (1/4 INCH)
4) Standard: UL499 Fig. 7.4.

Application:
a) Anywhere in the enclosure of a hand-supported product; or
b) In any portion of a product hand-held during use if a probe, when inserted point first a ma*imum distance of 2 inches (50.8 mm) into the opening touches any uninsulated live part or touches any enamel-insulated wire.

Company introduction

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No go gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 test finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauges Tester, Lampholders Gauges Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
