UL 1278 Fig. 8.4 Articulate Probe SA1788A

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-PA120
Made in China

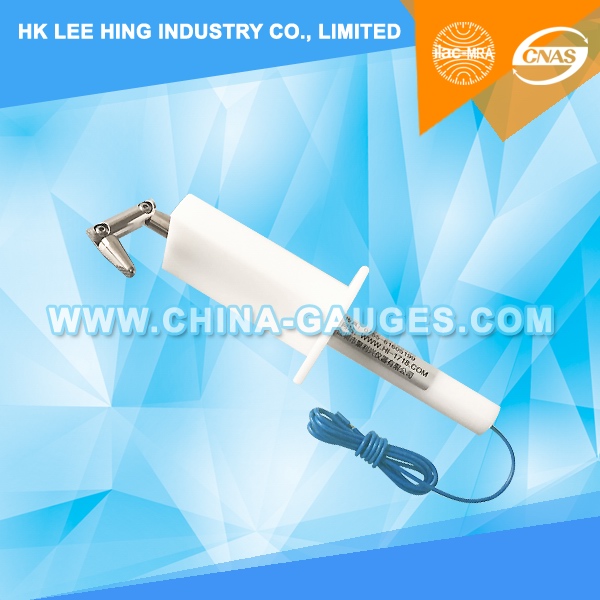

Product description: UL 1278 Fig. 8.4 Articulate Probe SA1788A
INQUIRY

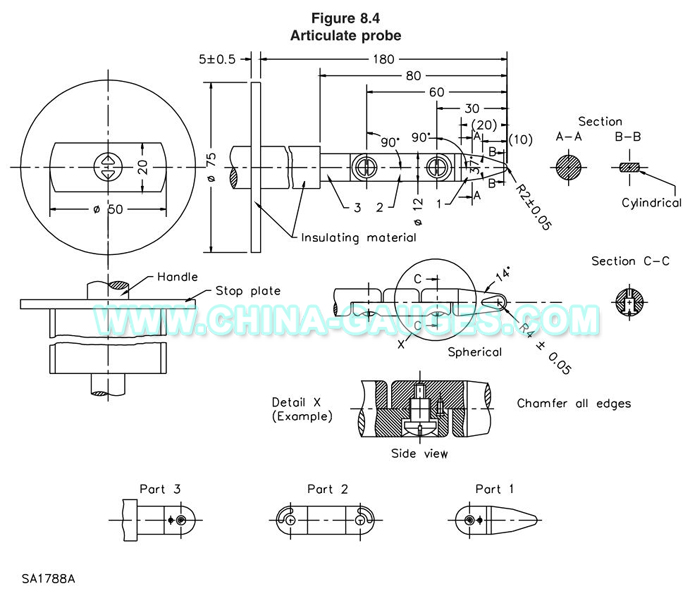

The Articulate Probe is a precision test probe made according to UL 1278 Fig. 8.4. It is also used by the standards of CSA, IRAM, IEC and in most of the rules involved in the verification of accessibility to live parts.

Technical Parameters:

1. Knurled Finger Dia.: 12 mm

2. Knurled Finger Len.: 80 mm

3. Baffle Plate Dia.: 50 mm

4. Baffle Plate Len.: 100 mm

5. Baffle thickness: 20 mm

The probe illustrated in Fig. shall be applied to any depth that the opening will permit; and shall be rotated or angled before, during, and after insertion through the opening to any position that is necessary to e*amine the product. The probe shall be applied in any possible configuration; and, if necessary, the configuration shall be changed after insertion through the opening. The probe is to be used as a measuring instrument to judge the accessibility provided by an opening, and not as an instrument to judge the strength of a material; as such, it is to be applied with the minimum force necessary to accurately determine accessibility.
