Plugs & Socket Outlets Gauges

UL 498 Plugs and Socket Outlets Gauge

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-UL498
Made in China
Product description: UL 498 Plugs and Socket Outlets Gauge. According to standard UL 498.
INQUIRY

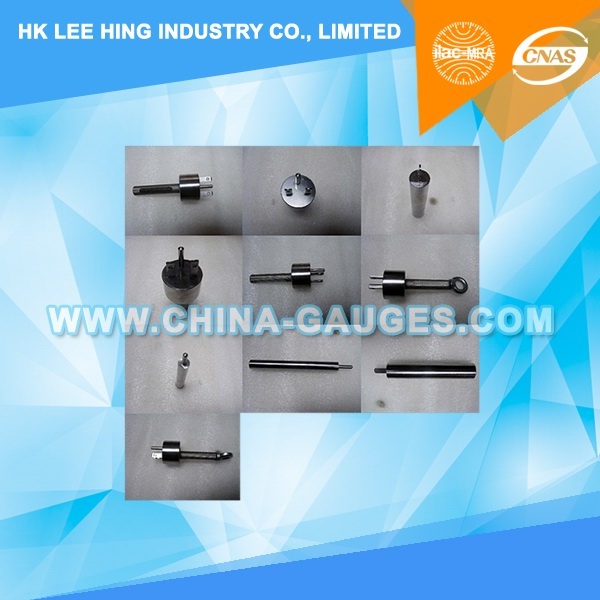

UL 498 Plugs and Socket Outlets Gauge

1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

3. Specifications:

1	UL498-figure9.1	Articulate probe with web stop
2	UL498-figure10.1	Prode
3	UL498-figure31.1	Flat prode
4	UL498-figure69.1	Reference plug
5	UL498-figure94.1	Impoper insertion test blades
6	UL498-figure105.1	Test plug
7	UL498-figure105.2	Test blade
8	UL498-figure118.1	Receptacle test fixture
9	UL498-figure118.3	Push out tool
10	UL498-figure118.5	Bridge
11	UL498-figure119.1	test pin A
12	UL498-figure119.2	Test pin B
13	UL498-figure119.3	57g ground pin
14	UL498-figure119.4	113g ground pin
15	UL498-figure129.2	No.14AWG test pin
16	UL498-figure132.1	test probe
17	UL498-fig132.2	Testprobe
18	UL498-figure144.2	Fixture for assembly security test
19	UL498-figureSD13.2	Over size ground pin
