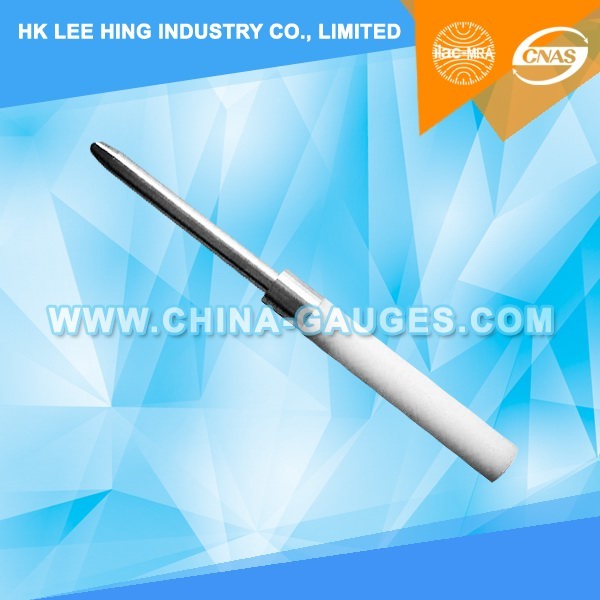

PA135A UL Probe for Film-coated Wire of UL507

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-PA135A
Made in China
Product description: The probes referenced in Table 9.1 and illustrated in Fig.s 9.1 and 9.2 shall be used as measuring instruments to judge the accessibility to uninsulated live parts and film-coated wire provided by ope
INQUIRY

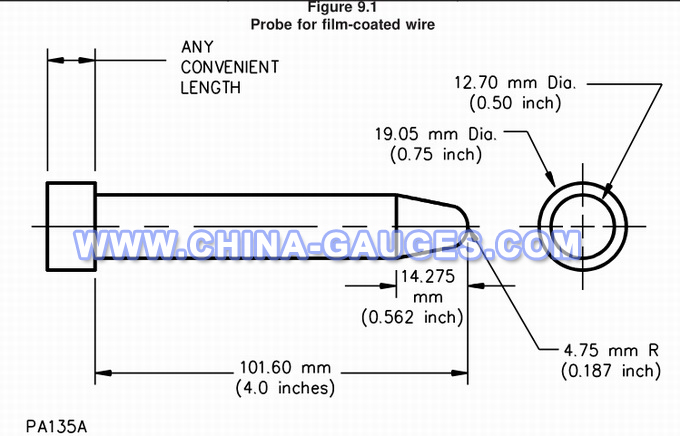

The probes referenced in Table 9.1 and illustrated in Fig.s 9.1 and 9.2 shall be used as measuring instruments to judge the accessibility to uninsulated live parts and film-coated wire provided by openings and not as instruments to judge the strength of a material. Force is not to be applied to the probe when judging accessibility.

Technical parameters:

Head Len.: 12.7mm(1/2 inch)
Total Len.: 101.6mm(4 inch)
The Head Radius: 14.3mm(9/16 inch)
Former Head Dia.: R4.8mm(3/16inch)
The Tail Dia.: 19.1mm(3/4 inch)
Reference: UL507(135A)/UL1026(PA130A)/UL1278
