Test Probe,Test Pin,Test Finger

PA130A Uninsulated Live Parts Probe of UL1278 Fig.8.1

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-PA130A
Made in China
Product description: UL Rigid test finger 130A meets the standard requirements of UL 507&UL 1287, used for simulating fingers and appliances. It is mainly used for checking whether the live parts are touched. Mainly used
INQUIRY

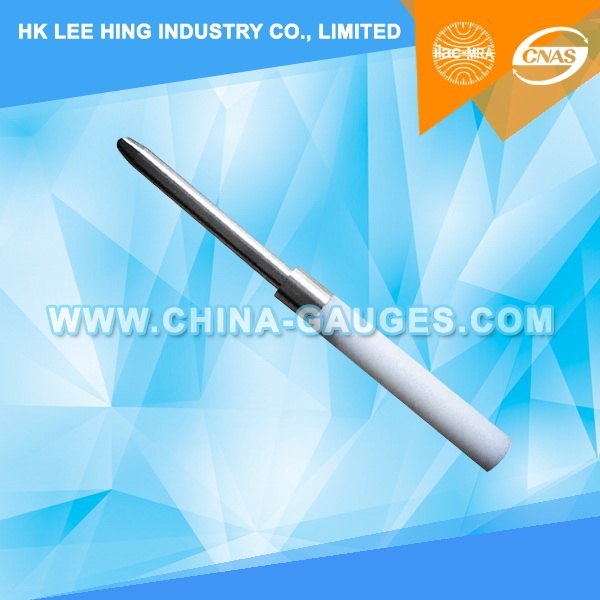

UL Rigid test finger PA130A meets the standard requirements of UL982 & UL 1278, used for simulating fingers and appliances. It is mainly used for checking whether the live parts are touched. Mainly used for testing the no insulation live parts.

Basic Introduction:
1, According to UL1278/UL982;
2, Applicable to the apparatus structure and shell easy access to live parts of protective performance check;
3, The probe cannot be made to touch any noninsulated live part or moving part capable of causing injury when inserted through the opening;

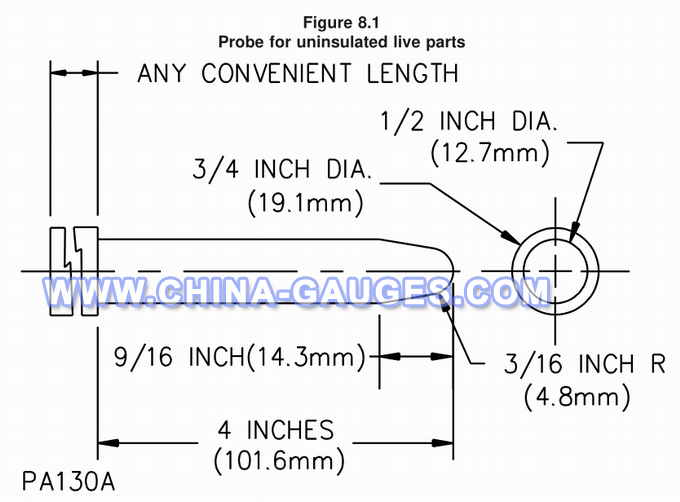

Technical parameters:
1, Straight Finger Dia.:12.7mm(1/2 inch)
2, Straight Finger Total Len.:101.6mm(4 inch)
3, The Head Len.:14.3mm(9/16 inch)
4, The Head Radius: R 4.8MM(3/16 inch)
5, The Tail Dia.:19.1mm(3/4 inch)
6, According to UL982(PA130A)/UL1278(PA130A)
