Electrical Safety Test Equipment

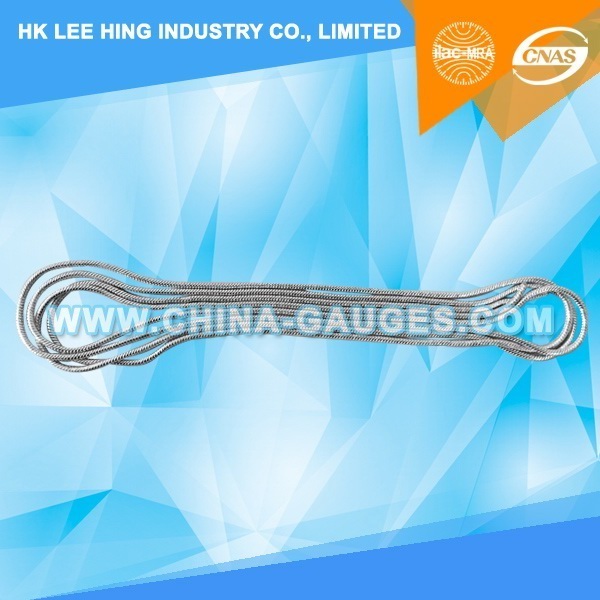

IEC 60598-1 Test Chain

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-TC25
Made in China
Product description: Used for lighting without insulation , accessible and opposite SELV part accidental short circuit protection test.
INQUIRY

Standards: IEC 60598-1 clause 4.26.3

Chain Len.: 1.30 meters

Chain Dia.: 2 mm

Resistance: 2.5Ω/m±20%

Purpose: Used for lighting without insulation , accessible and opposite SELV part accidental short circuit protection test.

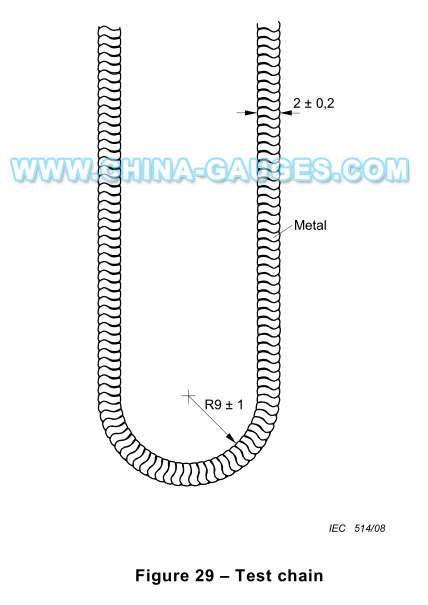

Test chain of sufficient length of an uncoated metal, having links in accordance with IEC 60598 Fig. 29 and made of 63 % Cu/37 % Zn. The chain shall have a resistance value of 2,5 Ω/m ± 20 % when stretched with a load of 200 g/m.

NOTE: The resistance value of the test chain should be checked before each measurement.
