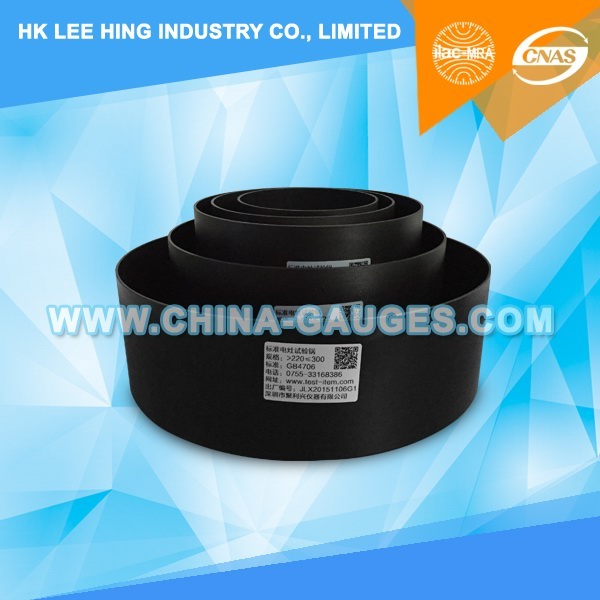

IEC 60335-2-9 clause 3 figure 104 Vessel for Testing Induction Hotplates

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-DT05
Made in China
Product description: one set with 5 pcs, the Dia. is: 110 mm, 145mm, 180mm, 220mm, 300mm; Base and wall thickness: 2mm±0.5mm; The vessel is made of low carbon steel having ma*imum carbon content of 0.08%.
INQUIRY

Main parameter:

one set with 5 pcs, the Dia. is: 110 mm, 145mm, 180mm, 220mm, 300mm

Base and wall thickness: 2mm±0.5mm

The vessel is made of low carbon steel having ma*imum carbon content of 0.08%

NOTE: The vessel is made of low carbon steel having a ma*imum carbon content of 0,08 %. It is cylindrical without metallic handles or protrusions. The Dia. of the flat area of the base of the vessel is to be at least the Dia. of the cooking zone. The ma*imum concavity of the base of the vessel is 0,006 d. The base of the vessel is not to be conve*.

Vessel for testing induction hotplates ( IEC 60335-2-9 clause 3 figure 104)

Dia. of cooking zone(mm)	Appro*imate Dimension
Dia. of cooking zone(mm)	Dia. (mm)	Wall highly (mm)	Bottom thickness (mm)	Wall thickness (mm)
≤110	110	140	8	2
>110≤145	145	140	8	2
>145≤180	180	140	9	2
>180≤220	220	120	10	2
>220≤300	300	100	10	2

figure 104.jpg
