Electrical Safety Test Equipment

30-Size Creepage Distance Test Card for Creepage Distances and Clearances

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-PD30
Made in China
Product description: The Gauges Set measures creepage and clearance distances, distances through insulation and other spacings. The set can be used for compliance testing of electronic equipment and other products as
INQUIRY

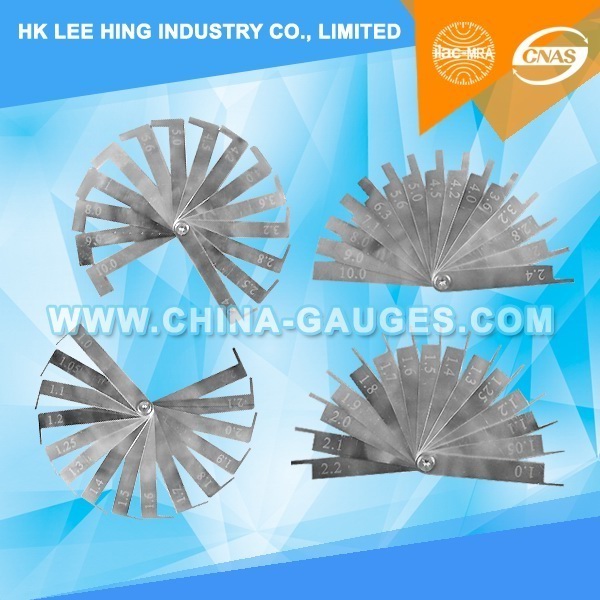

30-Size Creepage Distance Test Card for Creepage Distances and Clearances

The Gauges Set measures creepage and clearance distances, distances through insulation and other spacings. The set can be used for compliance testing of electronic equipment and other products as required by all international standards.

It is used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

Creepage distance test card is made of whole stainless steel.

30-Size: 1,0 / 1,05 / 1,1 / 1,2 / 1,25 / 1,3 / 1,4 / 1,5 / 1,6 / 1,7 / 1,8 / 1,9 / 2,0 / 2,1 / 2,2 / 2,4 / 2,5 / 2,8 / 3,2 / 3,6 / 4,0 / 4,2 / 4,5 / 5,0 / 5,6 / 6,3 / 7,1 / 8,0 / 9,0 / 10,0 mm

Standards: According to IEC 60598, IEC 60335, IEC 60601, IEC 60065.

Type: Straight, Bend (according to test condition).
