Test Probe A of IEC 61032

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-1201
Made in China
Product description: Test Probe A is necessary appliance for household and similar electrical appliance of against electric shock protection test.
INQUIRY

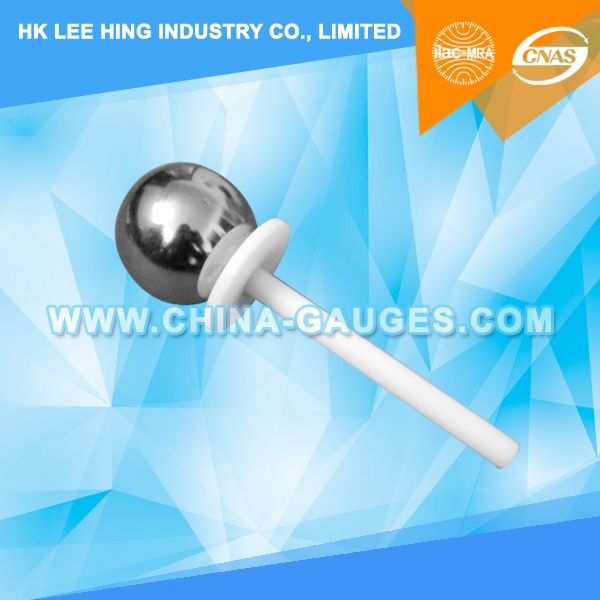

50mm Sphere test probe A with Baffle and Handle

Specification:

IP1X Probe A /Test Probe A
1, According to: IEC 61032:1997 / IEC 60529:2001 and UL;
2, Test Probe A is necessary appliance for household and similar electrical appliance of against electric shock protection test.

Technical Parameters:

1. Ball Dia.: 50mm

2. Baffle Plate Dia.: 45mm

3. Baffle Plate Thickness: 4mm

4. Handle Dia.: 10mm

5. Handle Len.: 100mm

6. According to IEC 61032 figure 1 (the Test probe A), table 6 GB/T4208-2008 the first characteristics (1)

Application:

1, Sphere can not touch the live parts or close to the dangerous parts.

2, In the testing requirements of keep close to the dangerous part, the test steel ball without thrust need to be used with push tension meter, and steel body for protective coating need to apply to 50 + 5 n (30 + 3 n) thrust.
