Test Probe 18 of IEC 61032

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-1218
Made in China
Product description: IEC 61032 Fig. 12 – Test probe 18 (small finger probe ∅ 8,6mm) This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.
INQUIRY

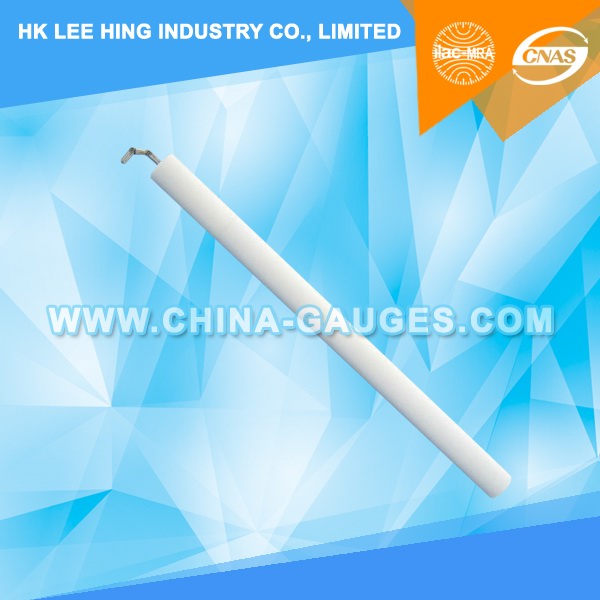

Small Finger Probe 8,6 test probe 18 of IEC 61032

Conforms to: Standard IEC 61032-1997.

IEC 61032 Fig. 12 – Test probe 18 (small finger probe ∅ 8,6)

– Finger: metal material

– Handle: insulating material

Technology Parameter:

Knurled finger Dia.:8.6 mm

Head radius:4.3 mm

Knurled finger length:57.9 mm(three knurls,19.3 mm/knurl)

Notes:

The e*tension of the handle represents the arm of the child.

And the handle is provided with an e*tension 451,6 mmlong, and the probe should be applied with or without this e*tension, whichever is the more onerous condition.

Both joints shall permit movement in the same plane and the same direction through an angle of 90°.

This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.
