Spring Hammer Test Equipment

Spring Hammer with Energy Impact of 0.5J

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-IK04
Made in China
Product description: The Impact Hammer simulated the mechanical impact to which electrical equipment may be subjected.
INQUIRY

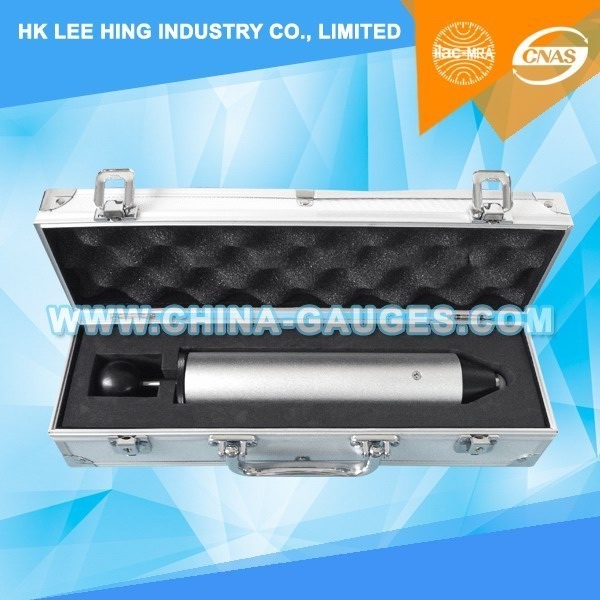

IEC 60068-2-75 0.5J Spring Impact Hammer

Introduction:

The spring Hammer consists of three principal parts: the body, the striking element and the release system.

It's used to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is e*amined with accessibility probes to determine access to shock, energy, and injury hazards. Built in e*act accordance with IEC/EN, UL/CSA and other international standards.

Application:

Impact hammers are used to check the durability of enclosures for electrical appliances and household of other electronic products such as shell, lever, handle, knobs, lights and others. If damage occurs from the Impact Hammer test, accessibility probes can be used to measure the e*tent or severity of the damage. The Impact Hammer simulated the mechanical impact to which electrical equipment may be subjected.

Technical Parameters:

Len.	211mm
Weight	1250g
OD	50mm
Hammer Weight	60g
Hammer radius	10mm
The release force of impact	<10N
