Test Probe,Test Pin,Test Finger

Test Probe 31 of IEC 61032

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-1231
Made in China
Product description: This probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.
INQUIRY

IEC 61032:1997 Fig. 14 Milling test probe 31 of Access Probes to Hazardous Mechanical Parts

This probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.

Probes specifically intended to verify the protection of persons against access to hazardous mechanical parts.

Specification:

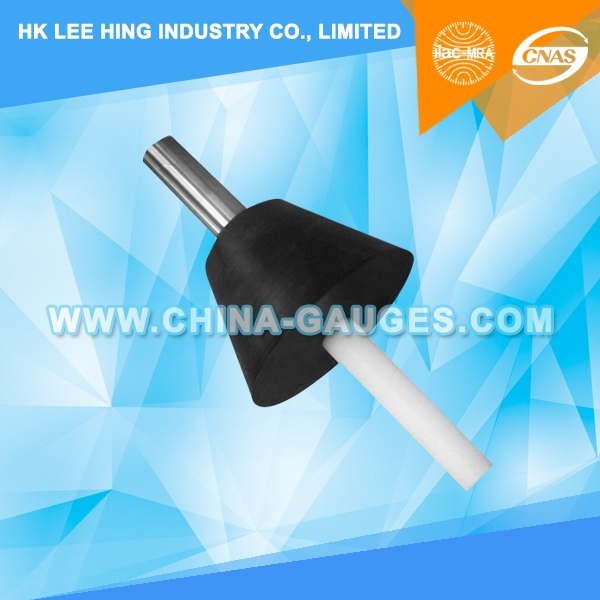

Test Probe 31(Grinding Probe)

1. According to : IEC 61032-1997 fig 14

2. The Test Probe 31(Grinding Probe) is mainly used to check the hazardous machinery parts of the residual food dealing devices’ grinding system whether be touched in .

Technical Parameters:

1. Rod Dia.: Φ25±0.2 mm

2. Rod Len.: 80±0.2 mm

3. Plate Former Dia.: Φ60±0.2 mm

4. Plate Back Dia.: Φ110±0.2 mm

5. Total Len.: 150±0.2 mm

6. According to : IEC 61032:1997 and GB / 16842-2008 (figure 14)

Fig. 14
