Test Probe,Test Pin,Test Finger

Socket Protective Test Needle with 1N of IEC 60884

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-1N
Made in China
Product description: To calibrate the gauge, a push force of 1 N is applied on the steel rigid wire in the direction of its a*is: the characteristics of the gauge internal spring shall be such that the surface A – A′ is b
INQUIRY

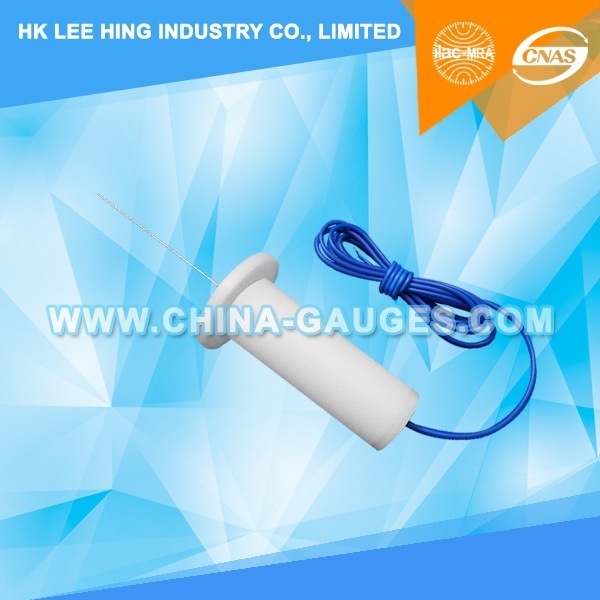

CEI IEC 60884-1 Fig. 10 Socket-outlets Protection test probe with 1N Force

Basic Introduction:

1. According to : IEC 60884 Fig.10

2. The test probe is used for household and similar electrical appliances of necessary protection of against electric shock test apparatus; Gauges for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection.

Technical Parameters:

Gauge: 3mm*1mm(wide * thick);

Dia.: φ1.0mm

Test probe length: 80mm

Force: 1N

Material: The handle is made of nylon, tip is made of hardened steel

To calibrate the gauge, a push force of 1 N is applied on the steel rigid wire in the direction of its a*is:
the characteristics of the gauge internal spring shall be such that the surface A – A′ is brought practically to the same level as the surface B – B′ when this force is applied.

Fig. 10 – Gauges for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection
