Test Probe,Test Pin,Test Finger

S2140A UL Test Probe of UL507

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-S2140A
Made in China
Product description: S2140A UL Test Straight Finger is necessary appliance for household and similar electrical appliances of against electric shock protection tester.
INQUIRY

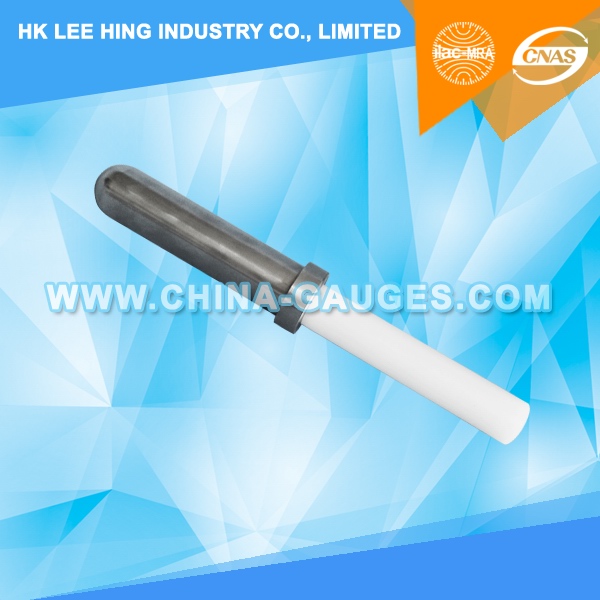

UL 507 Fig. 8.2 S2140Atest probe for Moving Pars of Stationary Fans

Probe for fan impellers and other moving parts of stationary fans and fans intended to be permanently connected electrically.

Technical parameters:

1, Straight Finger Dia.:25.4 mm(1 inch)
2, Straight Finger Total Len.:101.6 mm(4 inch)
3, Head Radius: R12.7 mm(1/42 inch)
4, Tail Dia.:31.75 mm(1-1/4 inch)
5, According to: UL507 (S2140A)Fig.8.2, UL1278, UL1026.

Company introduction

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No go gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 test finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauges Tester, Lampholders Gauges Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
