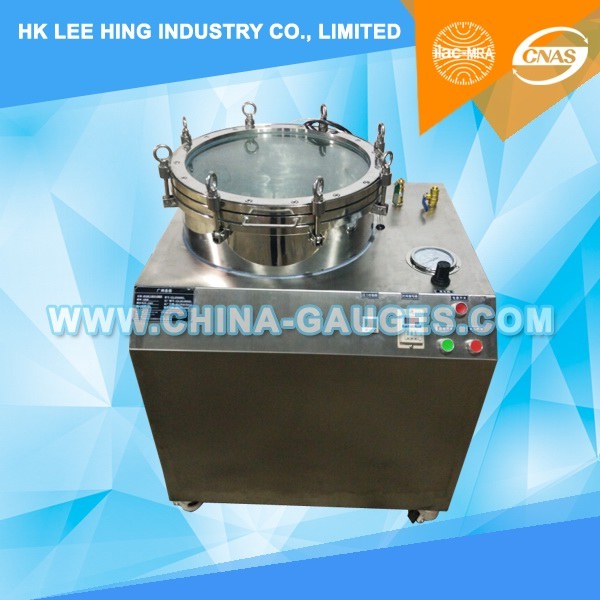

IPX8 Water Immersion Tank

Test standard:

IPX8 Water Immersion Tank is designed according to the relevant standard requirements of IEC 60529:1989+A1:1999.

Application:
The device is primarily a test product performance when immersed in water environment, mainly applicable to the case of the outdoor lighting, diving lamps (flashlight), swimming pool lighting, automotive lighting, household appliances, electrical and electronics, communications and signaling devices and other products do protection class test (IP waterproof rating test). Dedicated to water protection level detection device is ideal for professional testing organizations test equipment, as well as other water equivalent test methods. After the test, to determine the performance of the product through the identification is able to meet the requirements, in order for use of the product design, improvement, identification and factory inspection.


Features:
1. IPX8 pressure immersion test device all use SUS304 stainless steel plate with high accuracy of the overall sub arc welding forming, outside the mirror polished, inner rough polishing, beautiful appearance, easy to clean and durable.
2. Case are all made of stainless steel welding forming, antirust and beautiful appearance, the human body design (can cover height just easy open cover operation and observation of the test case, the panel 45 degrees inclined mode button operation)
3. Full transparent flange cover for easy observation of the water situation in the test sample,20mm thick tempered glass is firm and durable.
4. Special silicone sealing ring (elastic good never aging, a sealing ring can be used for ten years).
5. Using domestic big brand "Red Flag " brand pressure gauge, the surface Dia. is 100mmm, precision 1.6, intuitive display, high stability and accuracy, the gauge can pass the test of the national metrology units.
6. Safety valve all through the "Guangzhouspecial pressure equipment testing and Research Institute," inspection contract, each device is accompanied by a "safety valve inspection report" you can rest assured that use.
7. Electronic control components are all imported LG, Panasonic, Omron, and other brands, electromagnetic AIRTAC use genuine, durable.
8. Imported Panasonic brand "pressure sensor" automatic control test pressure, the pressure control range of -0.1-1.0Mpa, control precision 0.001Mpa.
9. Time control function, set the time 0-999 minutes to reach the test time can automatically stop the supply pressure and automatically drain the tank air,  the test personnel to open the tank cover and remove the test sample.
10. Bottom seat is equipped with four activities with brake casters for easy mobility.
11. Note: the height, Dia. and pressure range of IPX8 pressure water immersion test machine can be customized according to customer's request or product's size.

Specifications:
