Products

IEC Steel Rod Φ2.5mm with Dynamometer 3N

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
LX-IP30T
Made in China
Product description: IP3X Test Probe Pin is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.
INQUIRY

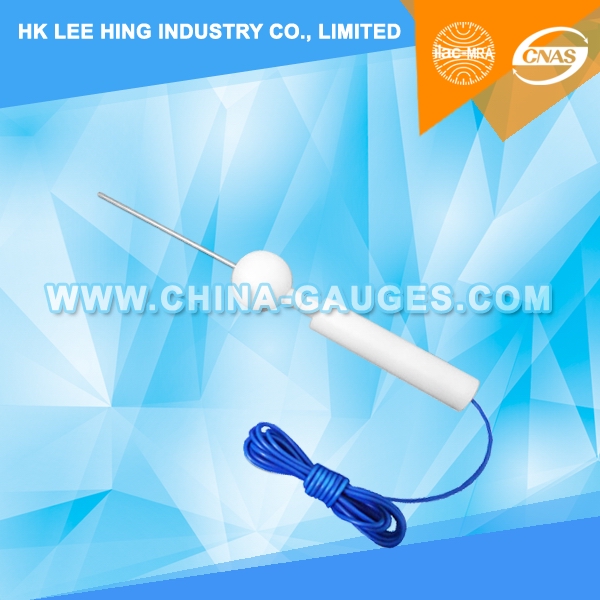

IEC Steel Rod Φ2.5mm with Dynamometer 3N

Basic Introduction:

1. According to: IEC 61032:1997 / IEC 60529:2001 / IEC 60065 / IEC 60598 and UL.

2. IP3X test probe C ( Test Probe C ) is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.

Technical parameters:

1. Rod length: 100 mm

2. Rod diameter: 2.5 mm

3. Circular-baffle diameter: 35 mm

4. Handle diameter: 10 mm

5. Handle length: 100 mm

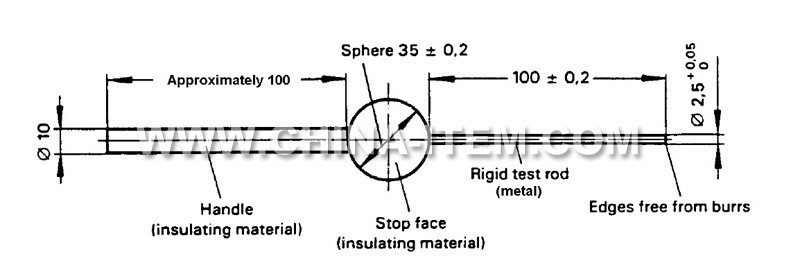

6. According to IEC 61032 Figure 3 (the Test probe C). Table 6 IEC 60529 (the first characteristic digital 3)

7. Thrust: 3N

Company introduction

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No go gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 test finger, AC Hipot Tester, Plugs and Socket Outlet Gauge, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
