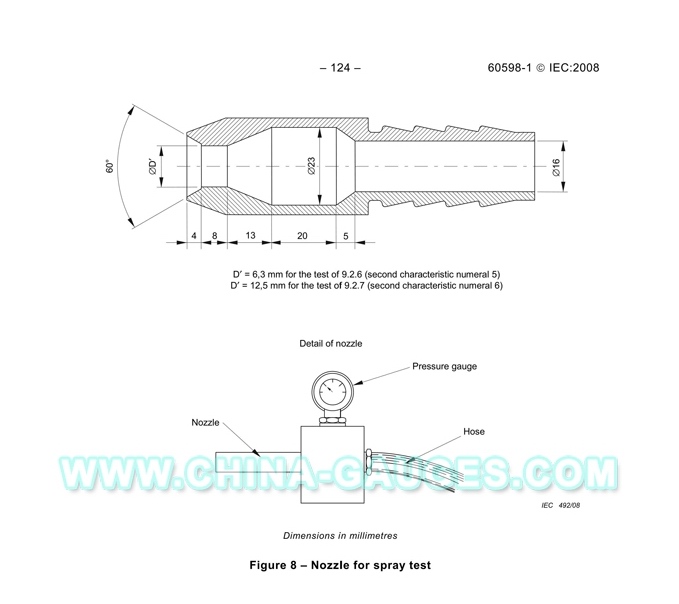

IEC 60598-1 Figure 8 Nozzle for Spray Test

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
LX-IPX5X6
Made in China

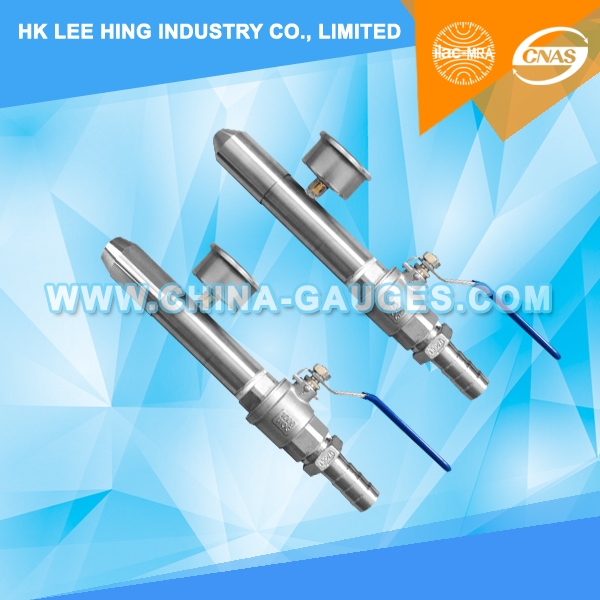

Product description: The IPX5 IPX6 Water Jets Nozzle of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are
INQUIRY

IEC 60598-1 Figure 8 Nozzle for Spray Test

This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the wrapper of equipment in fulfillment of IPX5 and IPX6 according to the IEC 60529 Section 14.2.5. & 14.2.6.

Item	IPX5	IPX6
The nozzle diameter	6.3 mm	12.5 mm
Testing time	Not less than 1min/m2 (not less than 3 mins)
The distance from jet nozzle to enclosure	2.5~3m
Pressure Gauge	0 - 2.5 bar ( 0 - 0.25 MPa )
Reference standards	IEC60529,IEC60598-1,IEC60335-1,IEC60745-1
Nozzle Material	Stainless Steel

Company introduction

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 test finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
