Lamp Cap Gauge

7006-4B-1 B15d Gauges for Testing the Retention of Caps in the Holder

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
7006-4B-1
Made in China
Product description: B15d Gauges for Testing the Retention of Caps in the Holder, 7006-4B-1 According to standard IEC 60061-3
INQUIRY

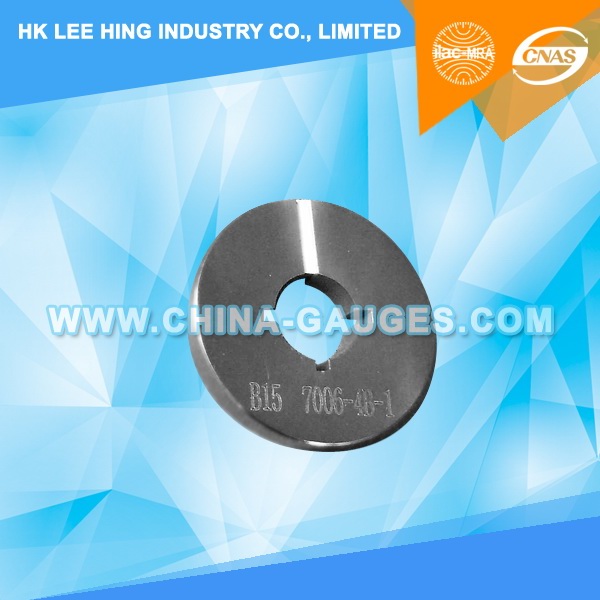

Gauges for testing the retention of B15d caps in the holder, 7006-4B-1

According to standard IEC 60061-3

Purpose:

To check cap dimensions for retention of the cap on the finished lamp in the lampholder.

Testing:

The cap of the lamp shall enter the gauge from surface X, until the pins have passed through slots Q. The caps is then turned through 90°for one pin to enter the gauged pin slot. With a slight pull the pin shall not pass surface Y. The test is made twice, the lamp being rotated through 180°,so that each pin in turn is gauged.

B15 Gauges
