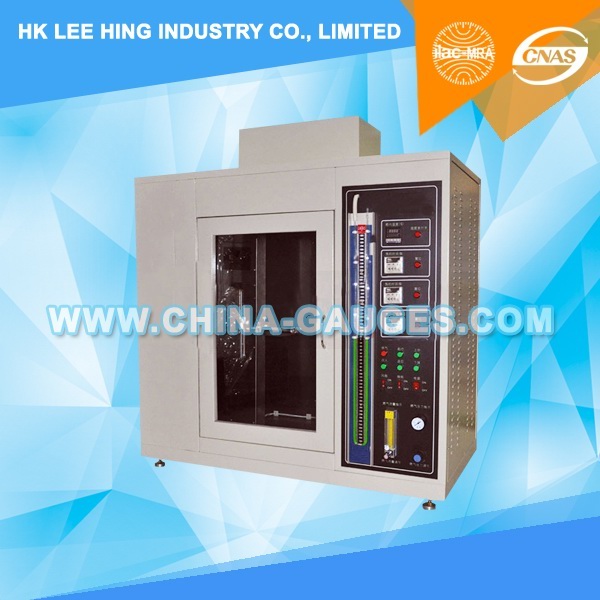

Horizontal and Vertical Flammability Tester

Product introduction:

Horizontal and Vertical Flammability Tester is suitable for  measuring and evaluating the combustion characteristics of plastic materials. It is designed and made based on the America UL94 standard the combustion characteristics’ testing of plastic materials used for device and equipment parts. It tests the horizontal  and straight combustion characteristics of plastic parts used for device and equipment, and equipped with gas flow meter to adjust size of flame. It use motor driving mode to make the operation easy andsafe.

Specification:

Cabinet capacity	≥0.5 cubic meters, with glass watch door
Ignite time	0~99  minutes and 99 seconds can be set
After flame time	0~99  minutes and 99 seconds can be set
Residual burn time	0~99  minutes and 99 seconds can be set
Timer	0~99 minutes and 99 seconds can be adjusted, burning time can be set, and burning duration can be recorded.
Burning angle	20°,45°,90°(equal to 0°) can be adjusted
Burner size parameter	Nozzle Dia. Ø9.5±0.3mm, nozzle effective length is 100±10mm, with air adjust hole.
Flame height	It can be adjusted from 20mm to 175mm according to the standard requirement.
Product feature	It is equipped with lighting device, air e*tracting device, gas flow regulating valve, product feature gas gauge, gas pressure regulating valve, gas flow meter, form U gas manometer and sample jig
Power	AC 220V, 50 Hz

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 test finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauges Tester, Lampholders Gauges Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
