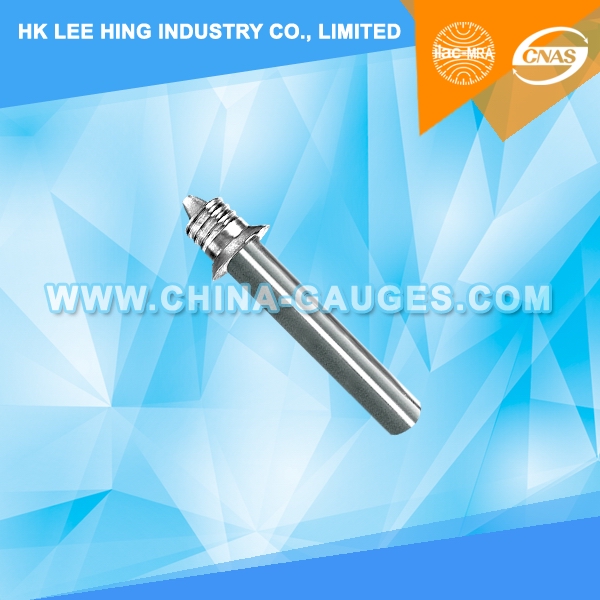

E11 Plug Gauge A for Testing Contact Making in Lampholders 7006-6A-1

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
7006-6A-1
Made in China
Product description: E11 Plug Gauge A for Testing Contact Making in Lampholders 7006-6A-1 According to standard IEC 60061-3.
INQUIRY

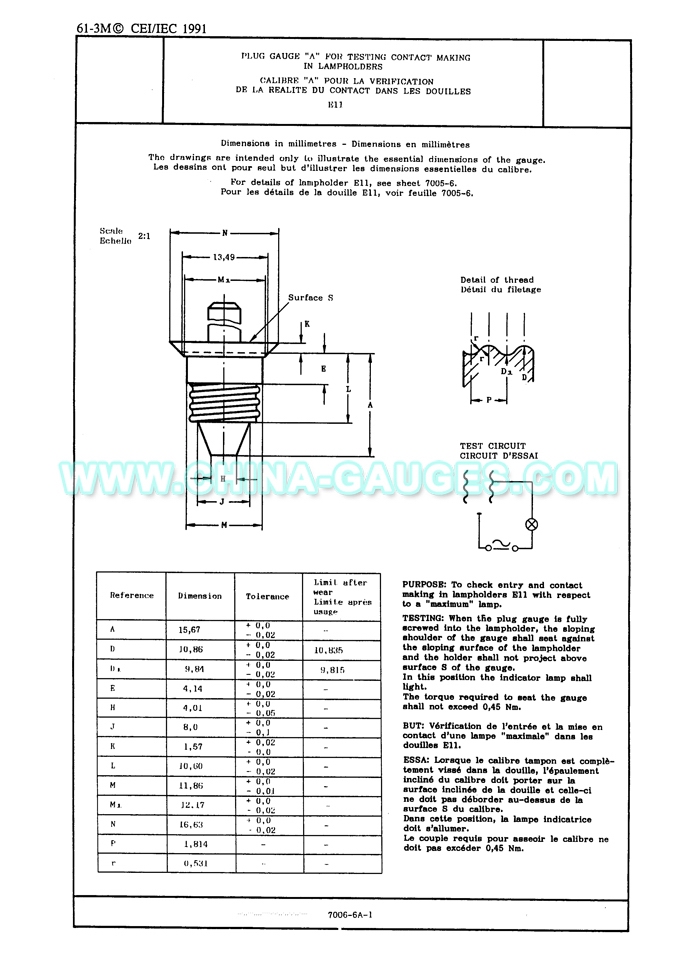

E11 Plug Gauge A for Testing Contact Making in Lampholders 7006-6A-1

PURPOSE: To check entry and contact making in lampholders E11 with respect to a "maximum" lamp.

TESTING: When the plug gauge is fully screwed into the lampholder, the sloping shouler of the gauge shall seat against the sloping surface of the lampholder and the holder shall not project above surface S of the gauge.

In this position the indicator lamp shall light.

The torque required to seat the gauge shall not exceed 0,45 Nm.
