E10, EP10, EY10 Not Go Gauges for Screw Threads of Lampholders 7006-26-4

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Test Report
7006-26-4
Made in China
Product description: E10, EP10, EY10 Not Go Gauges for Screw Threads of Lampholders 7006-26-4. According to standard IEC 60061-3.
INQUIRY

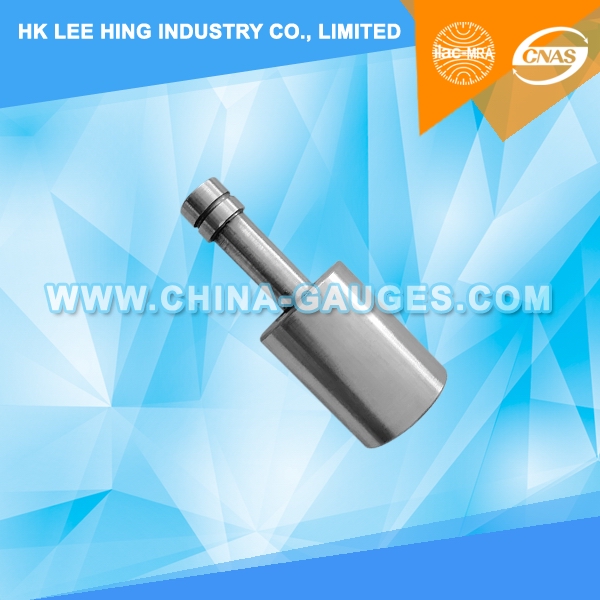

E10, EP10, EY10 Not go gauges for Screw Threads of Lampholders 7006-26-4

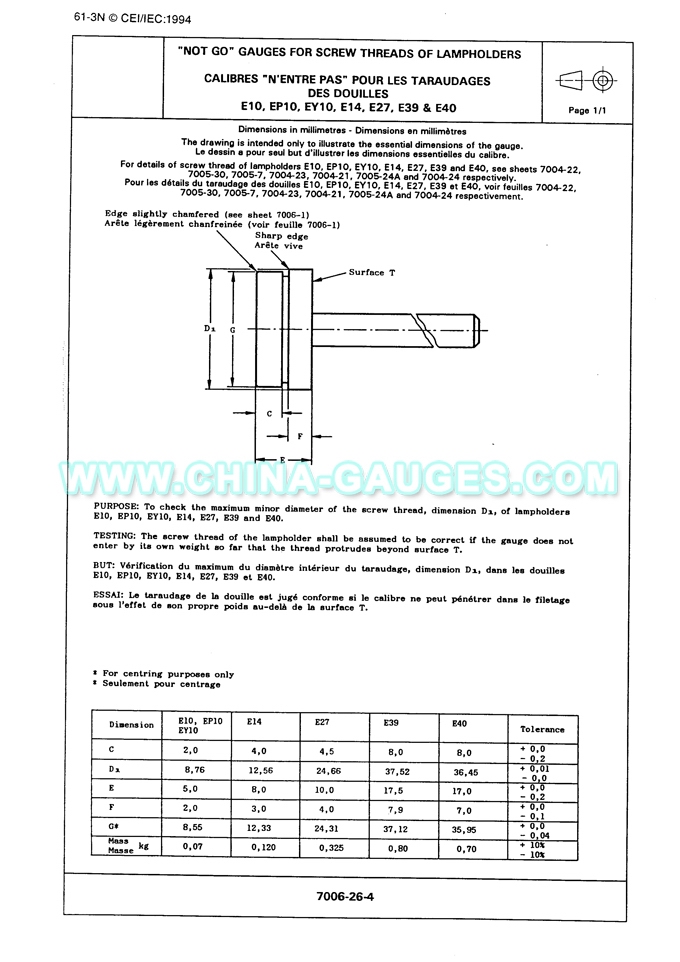

The drawing is intended only to illustrate the essential dimensions of the gauge.

For details of screw thread of lampholders E10, EP10, EY10, see sheets 7004-22, 7005-30, 7005-7, 7004-23, 7004-21, 7005-24A and 7004-24 respectively.

PURPOSE: To check the maximum minor diameter of the screw thread, dimenaion D1, of lampholders E10, EP10, EY10.

TESTING: The screw thread of the lampholder shall be assumed to be correct if the gauge does not enter by its own weight so far that the thread protrudes beyond surface T.

* For cetring purposes only
