Safety Testing Electrical Tester

AC/DC:0-20KV; AC:20mA, DC:0-10mA Voltage Withstand Test Instrument

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate

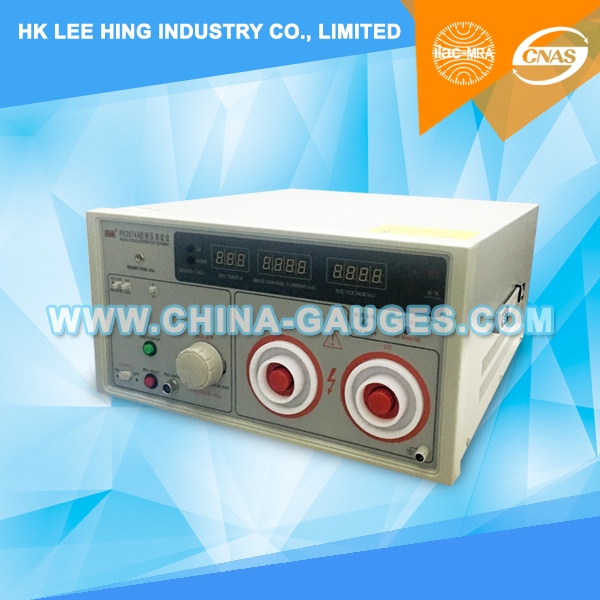

RK2674A
Made in China
Product description: This high voltage test (also called dielectric strength test, hipot test, hi-pot test, breakdown test or flash test) is made to stress the device under test to an AC or DC high voltage and check that
INQUIRY

Product introduction:

The RK2674AWithstand voltage tester mainly used for insulation leakage safety test of product. It can test the electrical safety performance inde* of breakdown voltage, leakage current of which all kind of the measured object intuitive, accurate and fast, and can be used for testing the components and overall performance as a high voltage source.

This series of tester according to the following standards: Standard for household electrical appliances(IEC 6035,GB4706.1-2001, GB4706.1-1998),Standard for lamp(IEC 60598-1-1999, GB7000.1-2000),Standard for information (GB8898-2001,GB12113.GB4943-2001, IEC 60065,IEC 60950) and so on.

Application area:

Components: diode, triode, high-voltage silicon stack, all kinds of electronic transformer, connector assembly, high voltage electrical equipment.

Household Electric Appliances: TV, refrigerator, air conditioner, washing machine, dryer, electric blanket, charger etc.

Insulation material: heat shrinkable tube, capacitor film, high pressure tube, insulating paper, insulated shoes, rubber insulating gloves, PCB circuit board etc.

Instruments and meters: oscilloscope, signal generator, DC power supply, switching power supply and other types of machine.

Lighting appliances: ballast, road lights ,stage lights, portable lamps and other types of lamps.

Electric heating appliances :electric drill, pistol drill, cutting machine, grinding machine, electric welding machine etc.

Wire and cable: high voltage cable, optical cable, electric cable, silicone rubber cable, etc.

Performance characteristics:

The output voltage regulated output by the regulator, which has high reliability and high durability.

Using high brightness LED digital displaying test time, voltage, current, it can display the breakdown current value and voltage value in real time.

Alarm current value can be preset arbitrarily.

Test time using three digital tube display

Main Technique Parameter:

Model		RK2674A
Output Voltage (Kv)	AC	0~20
	DC	0~20
Output Current (Ma)	AC	0~2/20
	DC	0~2/10
Test accuracy		±5%
Test time		(0.0~999)s 0.0=continuous test
Transformer capacity		400VA
Interface of PLC		optional
Power Requirments		AC:220V±10% 50Hz/60Hz
Working environment		Temperature:(0-40)℃ Humidity≦75%RH
E*terior style		Desktop type
E*terior dimension		450×515×230
Weight		35kg
Accessory		High voltage test line, ground wire, power line.
