Test Probe,Test Pin,Test Finger

535g 2inch Steel Sphere of UL Impact Test

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-B535
Made in China

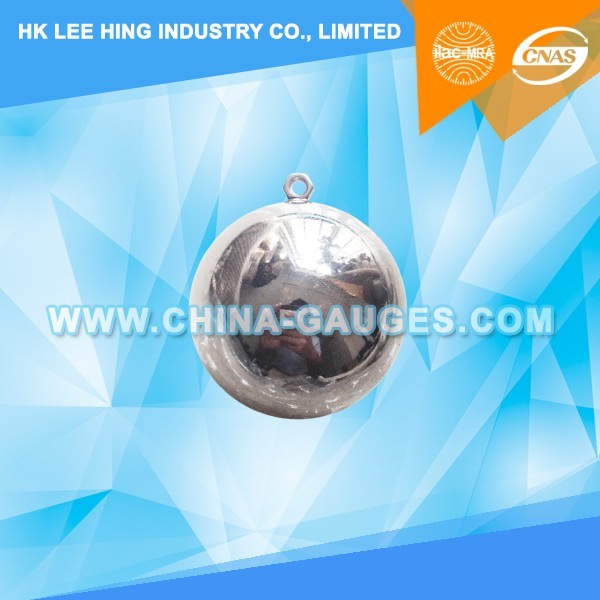

Product description: The Impact Test Ball is a specially machined ball to test impact resistance according to International Standards. It is made of chrome-plated steel for durability, and is fitted with an eyelet to faci
INQUIRY

Specifications:
Impact Test Ball 2 Inch
535 grams Weight 50.8 mm Dia.
1.18 pounds Weight 2 inches Dia.

The Impact Test Ball is a specially machined ball to test impact resistance according to International Standards. It is made of chrome-plated steel for durability, and is fitted with an eyelet to facilitate testing for pendulum applications.

According to UL1989, UL1418 and other.

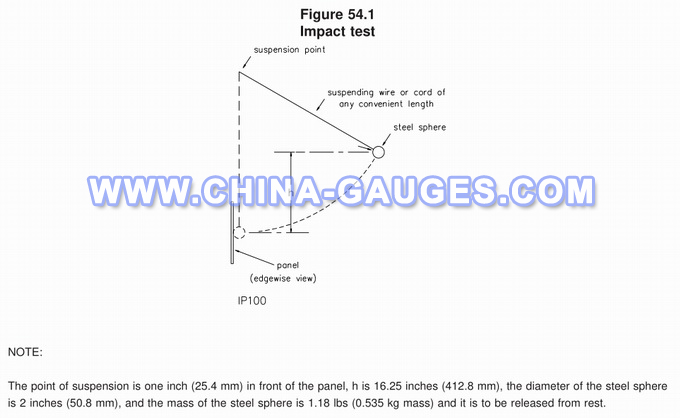

The point of suspension is one inch (25.4 mm) in front of he panel, h is 16.25 inches (412.8 mm). the Dia. of the steel sphere is 2 inches (50.8 mm). and the mass of the steel sphere is 1.18 lbs (0.535 kg mass) and it is to hbe released from rest.

Company introduction

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 test finger, AC Hipot Tester, Plugs and Socket Outlet Gauge, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauges Tester, Lampholders Gauges Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
