Test Probe,Test Pin,Test Finger

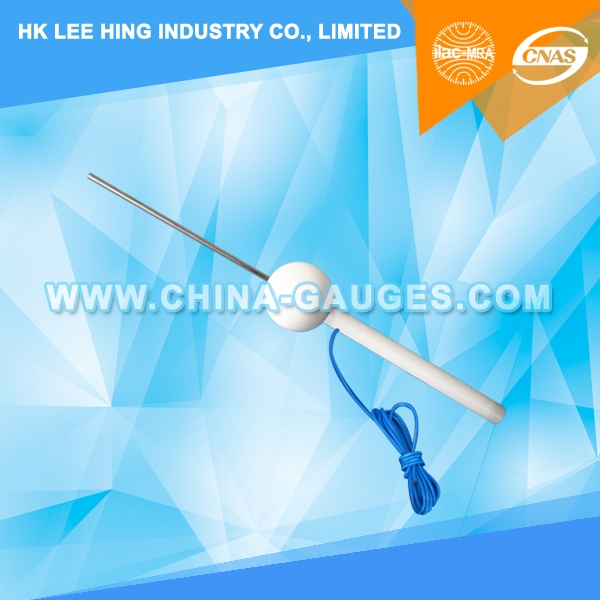

Dia. 3mm, 100mm Long Test Pin with Cable

Measurement & Analysis Instruments > Safety Instrument
Include ISO 17025 CNAS & ILAC Calibration Certificate
LX-3001C
Made in China
Product description: Dia.: 3mm , length: 100mm . Used to verify protection against access to hazardous parts by use of a tool through holes which give access to preset controls.
INQUIRY

According to: EN61010-1 6.2.3

Used to verify protection against access to hazardous parts by use of a tool through holes which give access to preset controls.

Meets IEC, EN, UL and CSA Standards including IEC 61010, IEC 60335-2-25, EN61010-1, UL3101-1, UL3111-1 and CSA1010-1.

The handle and stop face are made of nylon. The rod is hardened steel.

Technical parameters:

1. Rod length: 100 mm
2. Rod Dia.: 3 mm
3. Circular-baffle Dia.: 35 mm
4. Handle Dia.: 10 mm
5. Handle length: 100 mm

6.2.3 Openings for pre-set controls
A metal test pin 3 mm in Dia. is inserted through holes intended to give access to pre-set controls which require the use of a screwdriver or other TOOL. The test pin is applied in every possible direction through the hole. Penetration shall not e*ceed three times the distance from the ENCLOSURE suface to the control shaft or 100 mm, whichever is smaller.
