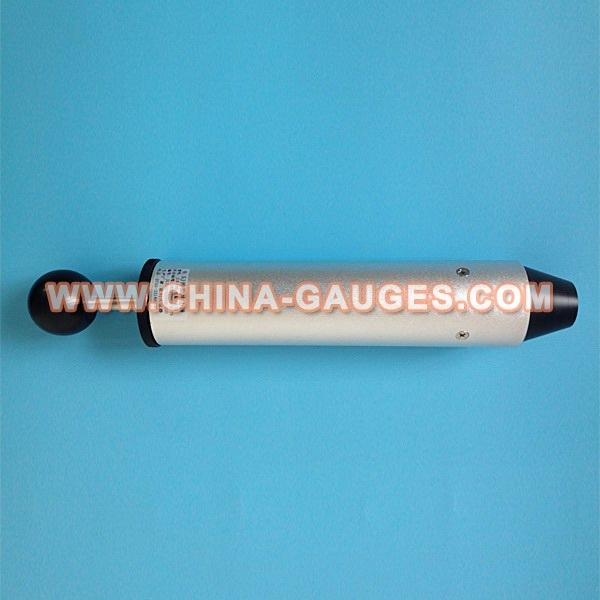

Single Energy Type IK04 Spring Impact Hammer

Photos

Technical parameters:

Length:211mm

Weight:1250g

Hammer Weight :60g

Hammer Radius:10mm

The release force of impact: <10N

Impact Components: Including the hit ball handle the hammer ,weight 250g

Hammer head is made from white polyethylene imine first.

Types: Spring Operated Impact Hammer single energy IK04

Standard	Energy
IK04	0.5J

Spring impact hammer is designed according to the IK standard for testing the resistance of impact of electrical and electronic products. Spring impact hammer is the necessary test probe to check the safety performance of enclosure of electrical products under the condition of external mechanical forces.

It is used for the mechanical robustness testing of domestic and similar electrical appliances, electronic products, such as lights, enclosure of electrical accessories, lever, handle, knobs, indicator lights, signal lights, lampshades and so on.

Spring impact hammer can make sure that the tested products can withstand the possibility of reckless operations and other accidents. The electrical appliances can run safe and reliable and won’t cause harm to people.
