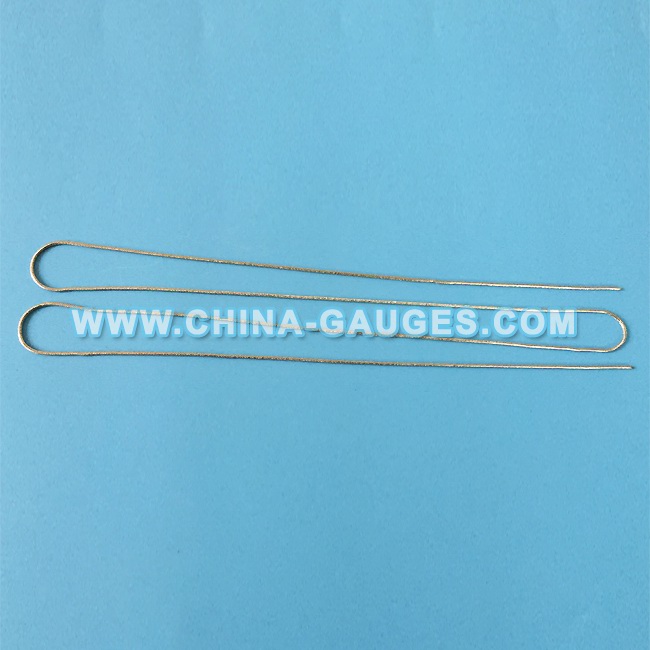

IEC60598 Test Chain Equipment

Photos

Standards: IEC60598-1 clause 4.26.3, EN60598-1 clause 4.26.3.

Chain Length: 1.30 meters

|
Chain Diameter: 2 mm
|
Resistance: 2.5Ω/m±20%

Purpose: Used for lighting without insulation , accessible and opposite SELV part accidental short circuit protection test.

Test chain of sufficient length of an uncoated metal, having links in accordance with IEC60598 Figure 29 and made of 63 % Cu/37 % Zn. The chain shall have a resistance value of 2,5 Ω/m ± 20 % when stretched with a load of 200 g/m.

NOTE: The resistance value of the test chain should be checked before each measurement.

Company introduction

HK LEE HING INDUSTRY CO., LTD are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: go not go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 test finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
