  • Glow Wire Element Type U

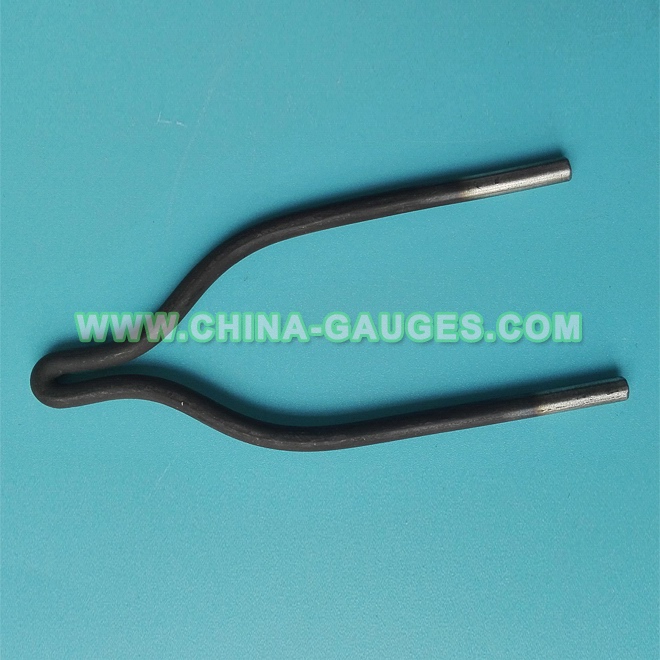

Glow Wire Element Type U

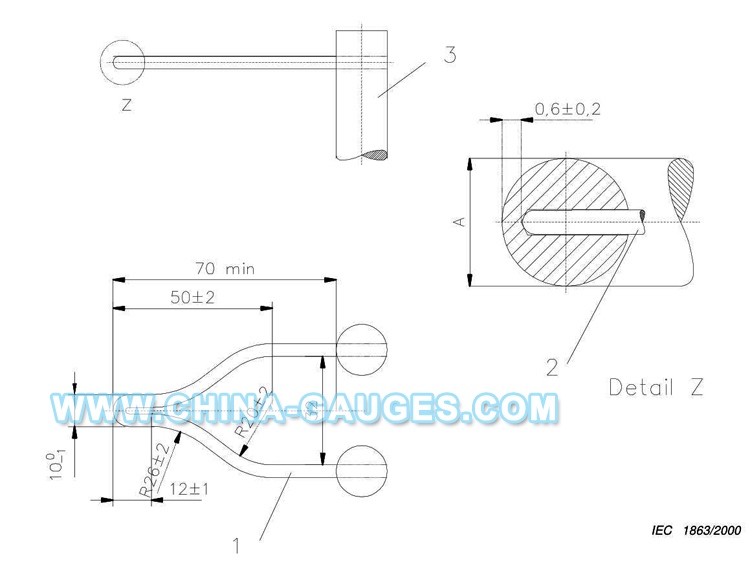

Factory IEC60695-2-10 Figure 1 Glow Wire Element


Thermo resistance, spare part set of Glow Wire Apparatus Acc IEC60695-2-10. Thermo resistance loop is a wire loop that is defined at a temperature and is pressed against a stan­dardized test platelet made of plastic (or other materials) for a prescribed period of time under precise test condi­tions.

The test examines whether the test specimen ignites, whether the flames propagate and whether burning material drips.



Characteristics of Resistance:


Material Nickel/Chromium(80/20)  Alloy
Diameter of wire 4mm Tolerance 0.04mm
Length 80mm
Width between terminals 36mm
Thermocouple fit 0.55hole
Reference IEC60695-2-10 Figure 1
