Electric Shock Protection Standard Test Probe Pin Thorn Kit of IEC 60335

The IEC 60132/60335 standard test probe Pin Thorn Kit are the necessary items for household and similar electrical appliances anti-electric shock protection test.

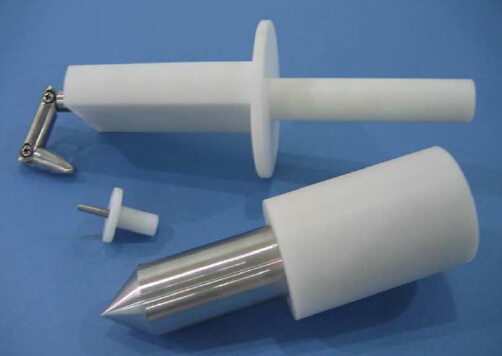

The test kit consists of :

No.	Item Name	Stadanrd
1	test probe b	IEC 61032 figure 2
2	test probe 13	IEC 61032 figure 9
3	Test Probe 41	IEC 61032 figure 16

1. Stadard Test Probe B

Bending finger diameter :12mm.

Bending length: 80mm (the total length of three sections)

Baffle diameter: 50mm

Baffle length: 100mm

This is a precision test finger made in accordance with many standards like IEC 61032 figure 2,  IEC60950 figure 2A,IEC60884,IEC60335,UL507,and UL1278 figure 8.4. This probe is intended to verify the basic protection against access to hazardous parts.

2. Test Probe 13

Probe diameter: head 3mm tail 4mm

Probe length: 15mm

Baffle diameter: 25mm

Baffle thickness: 4mm

This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment. It conforms to IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065 standard requirements.

3. Test Probe 41

Probe diameter: 30mm

Probe length: 80mm

Handle diameter: 50mm

Handle length: 80mm

The test thorn probe is intended to verify the protection against access to glowing heating elements. It complies with IEC61032 figure 16 Test probe 41, IEC60335 standard requirements.
